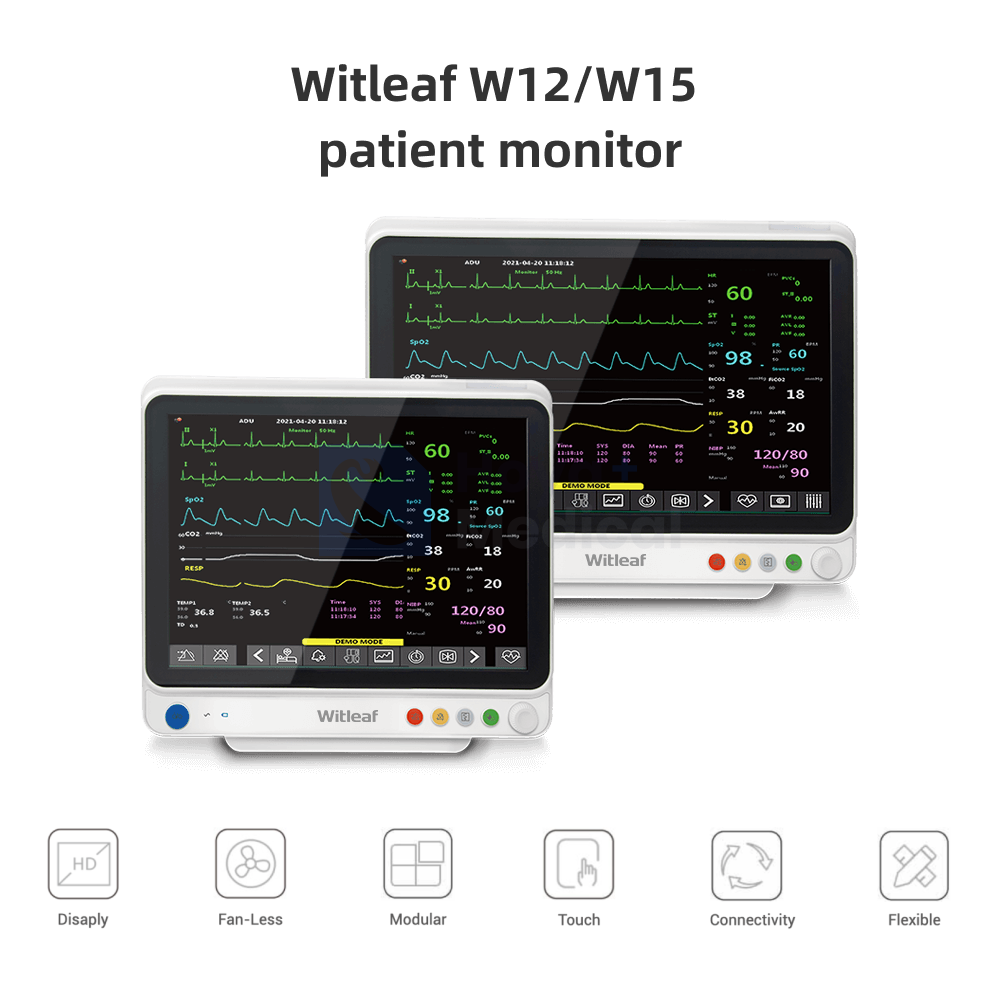

The monitor adopts a modular design and a compact structure to meet the needs of various different parameter detections. It is suitable for adults, children and newborns.
Standard parameters: SpO2, 3/5 leads ECG, PR, HR, RESP, NIBP,2*TEMP.
Optional parameters: EtCO2, 2*IBP, CO.

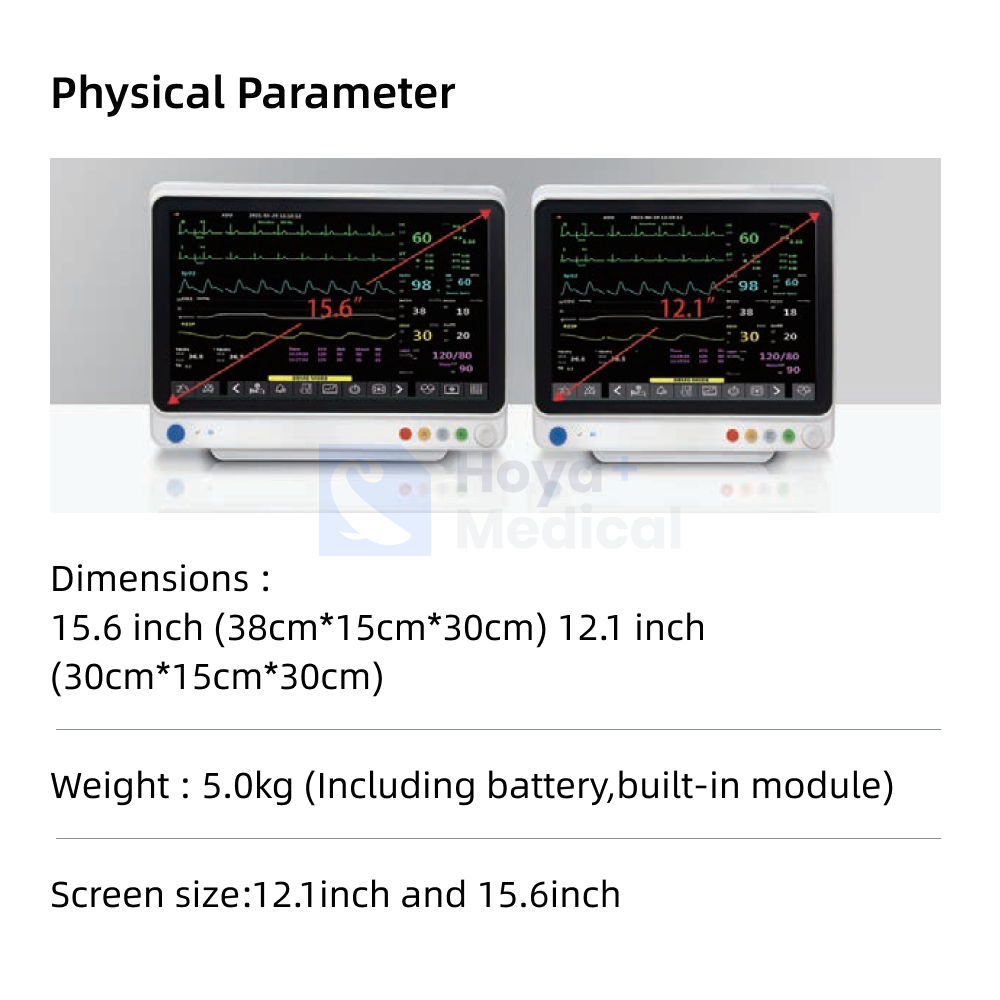

12.1inches/15.6inches colour LED screen with touch screen and /or rotator knob.

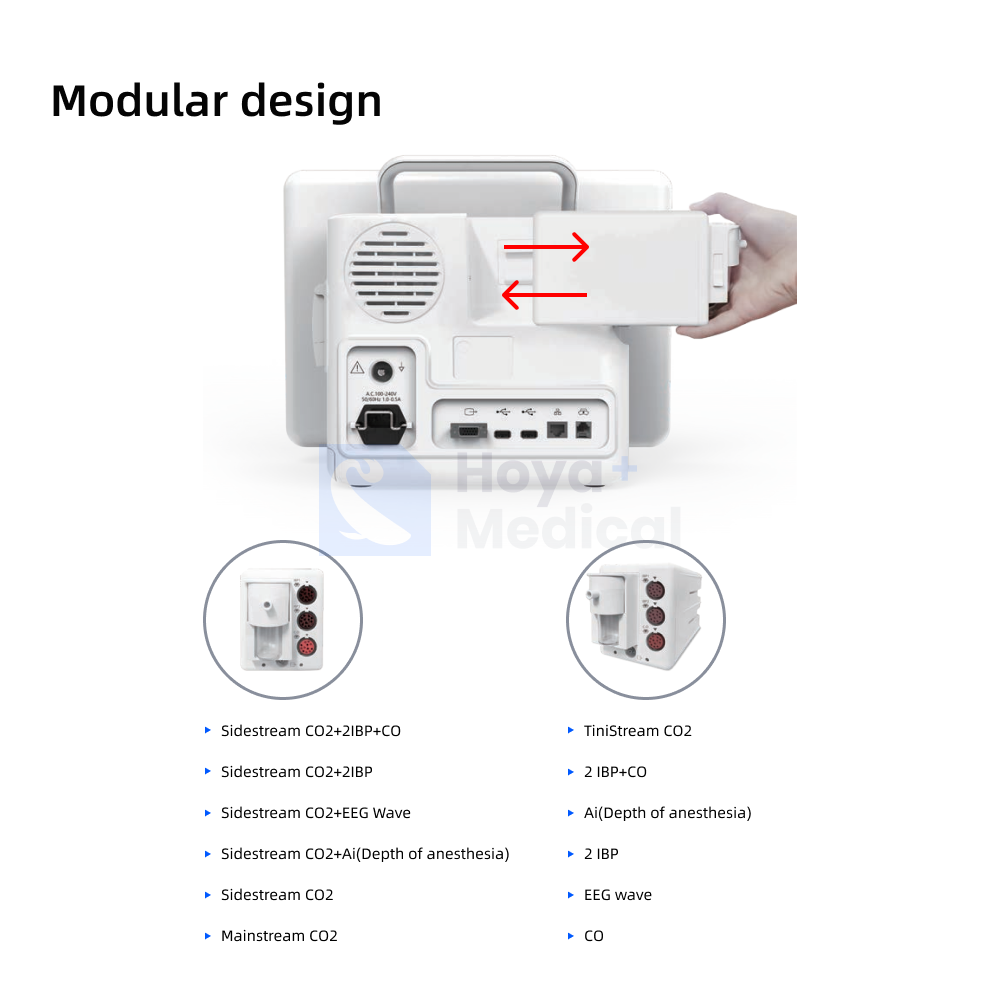

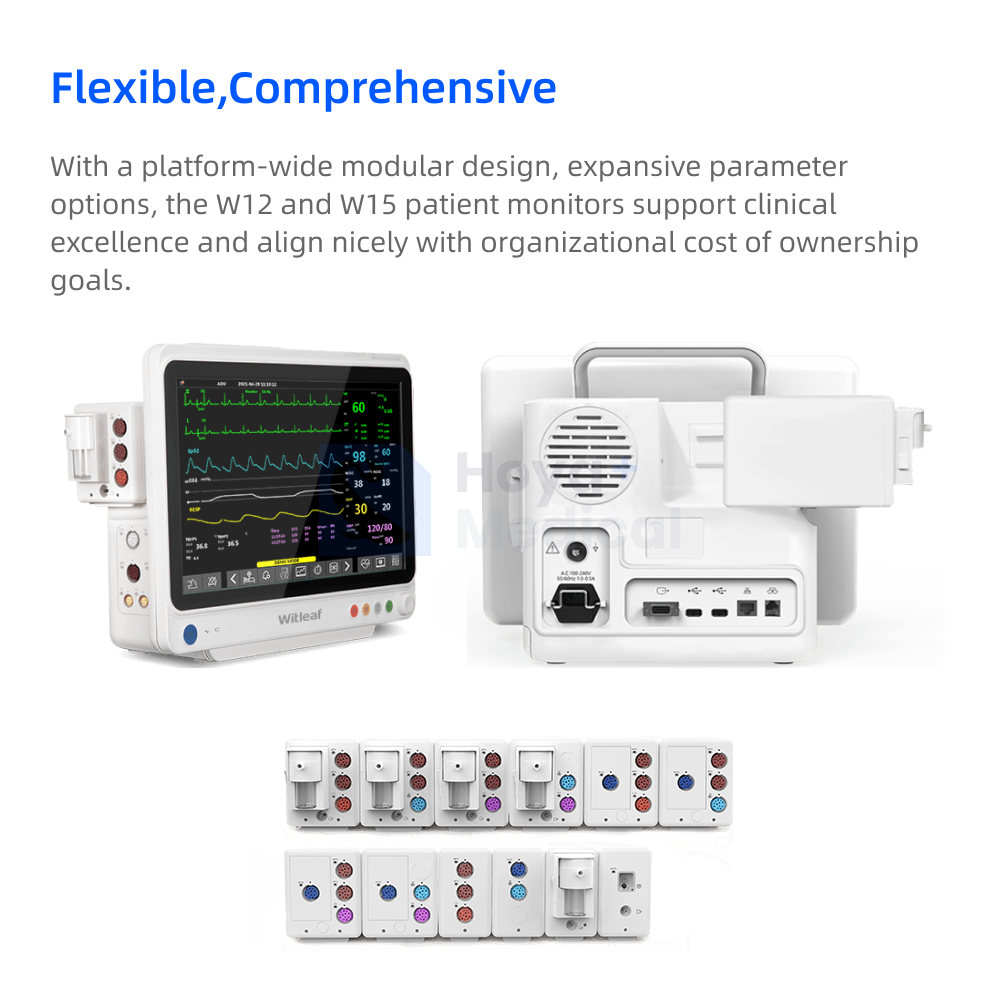

Upgradable module is interchangeable (plug and play type).
Capable to visualize 6 or more waveform. Support colour coding for different waveform.
ST segment analysis with ST trend with continuous display of ST value on screen.

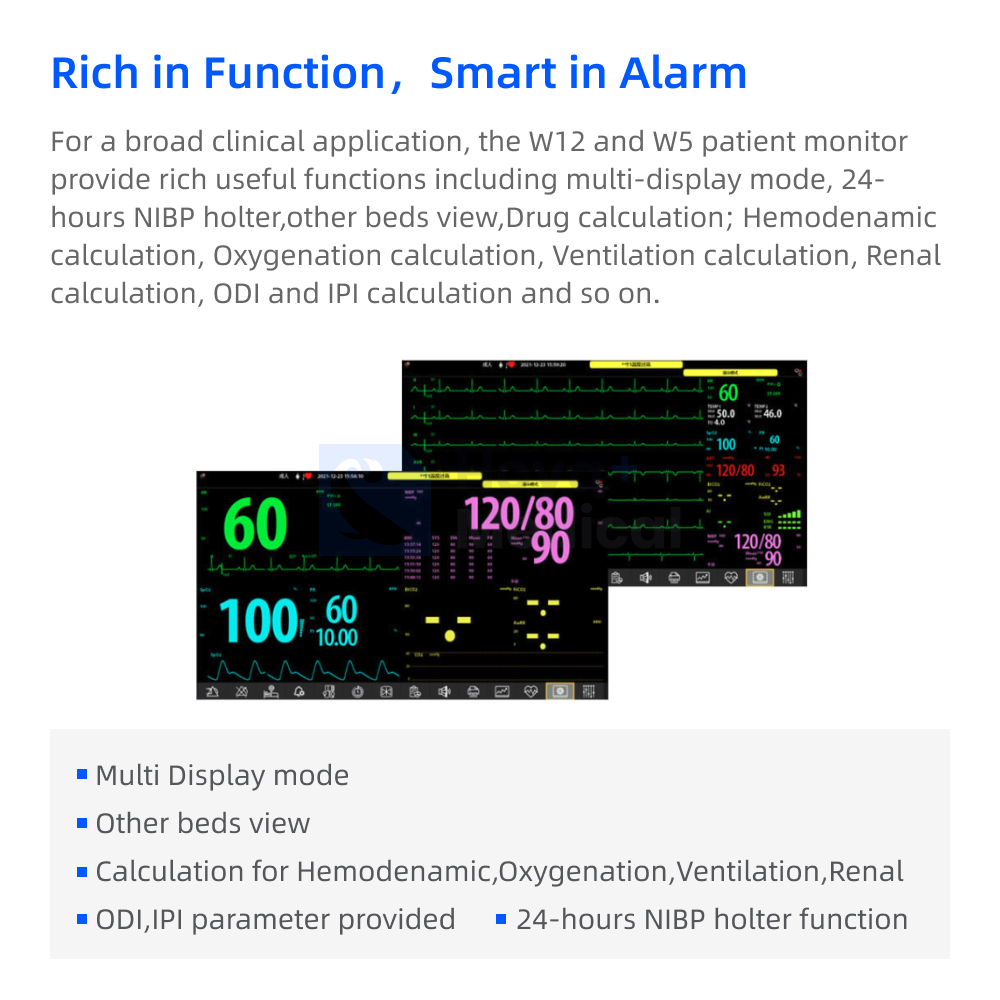

Multiple screen layout to view big font size in numeric and waveform.
Trending facilities for upto 360 hours of both graphical & numerical along with eventreview facility for all parameters and full waveform disclosure facility.
Different visual alarm with colour coding and audible alarms for variousparameters with three levels of volume adjustment.

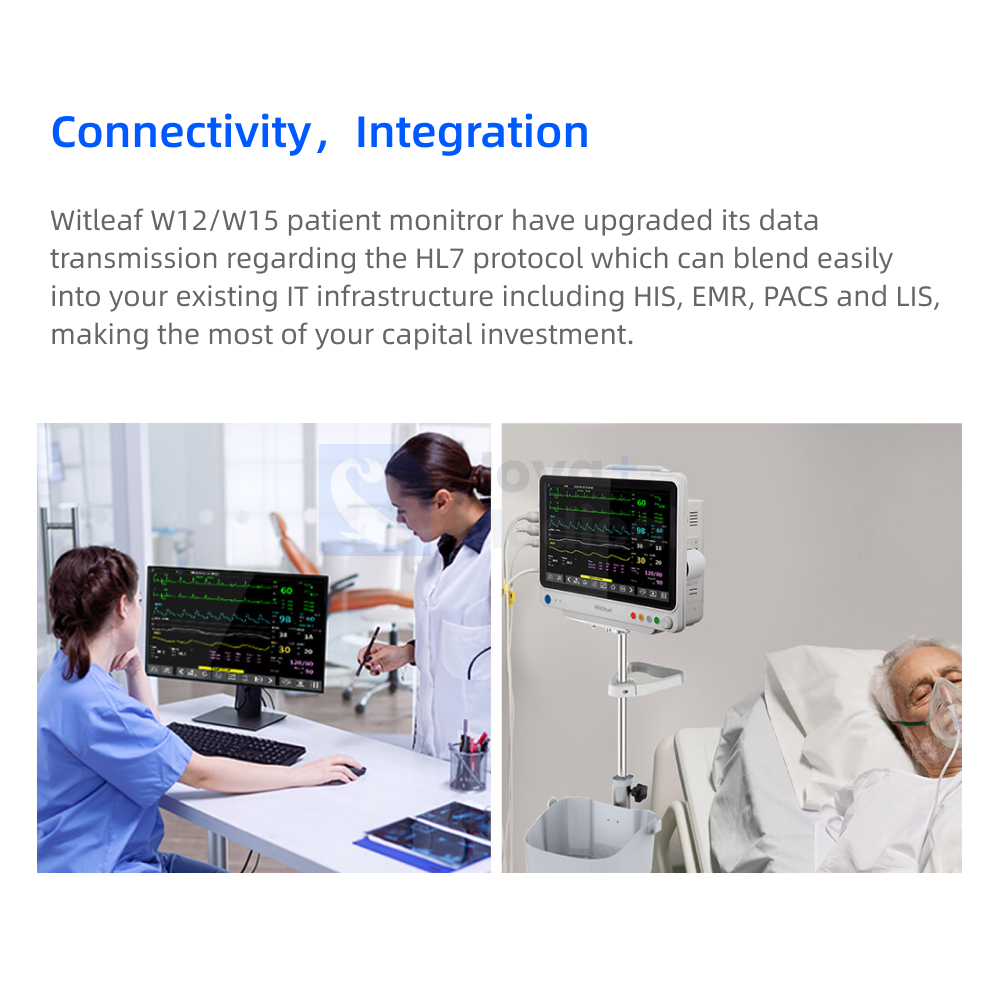

Support HL7 protocol to access the central workstation Energy-saving, low-power design, extending battery life Configure noise reduction fan to ensure a quieter and cleaner environment Arrhythmia detection and analysis in various leads.
A inbuilt battery backup of 4 hours.
